Choose the mosaic installation manual according to your pool material.

Installation of mosaic on galvanised steel pools

Installation system

It is an innovative system created to ensure watertightness in galvanised steel pools with the aim of giving a mosaic finish that is much more aesthetic and durable than the usual PVC liner.

How to install the mosaic on galvanised steel pools

Installation steps

How to install the mosaic on galvanised steel
How to install the mosaic on galvanised steel
How to install the mosaic on galvanised steel
How to install the mosaic on galvanised steel
How to install the mosaic on galvanised steel
How to install the mosaic on galvanised steel

Waterproofing the walls

Install the self-adhesive sheet on the steel walls to make the basin watertight.

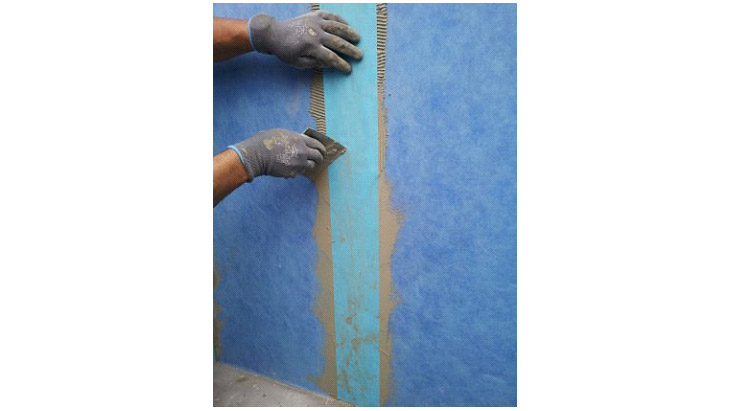

Sealing the walls

Sealing the joints between the self-adhesive sheets with waterproof tape. To attach it we will use the appropriate adhesive.

Waterproofing the floor

We will stick the self-adhesive sheet over the entire surface of the concrete slab using the specified adhesive. Overlaps of 5 cm will be created. The overlaps between sheets must be sealed with the same adhesive as in step 2.

Waterproofing the junction between floor and walls.

For this we will use the same flexible tape and the same adhesive as in step 2.

Sealing of the pool accessories.

For the sealing of the skimmer-type accessories, lights and impellers, we will use a specific putty and apply it between the sheet and the accessory.

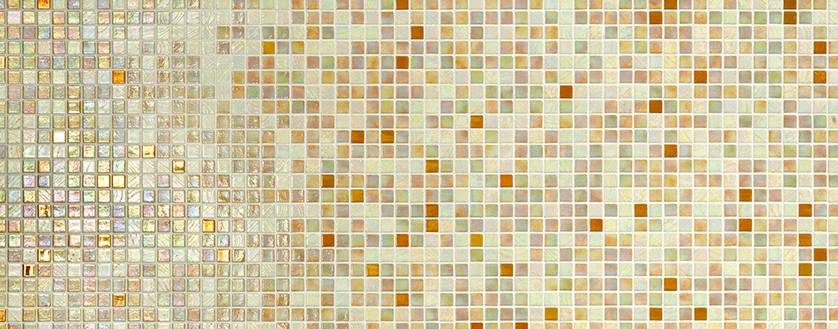

Installation of the Ezarri mosaic

Using the recommended adhesive and grout.

/
